Spring

SpringMVC

MyBatis

Mysql 8.0.15

​數據庫管理系統，創建數據庫

Tomcat 8.5.51

​用于部署web項目

Maven 3.6.1

​項目構建、項目依賴管理

lombok 1.18.10（可用可不用工具）

​用于類注解創建setter、getter、無參構造、全參構造、toString等函數

​注：只導入依賴，不安裝插件是不起作用的

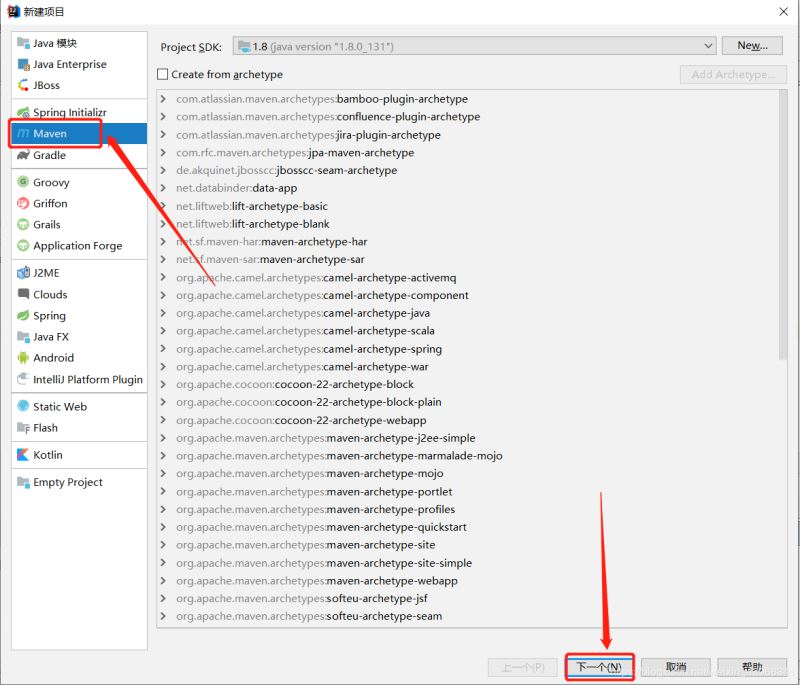

3.1 新建一個空Maven項目，填寫項目相關信息，完成

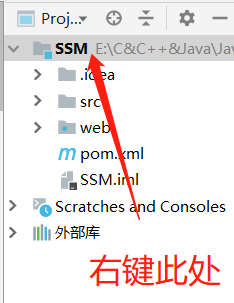

3.2 添加web框架支持

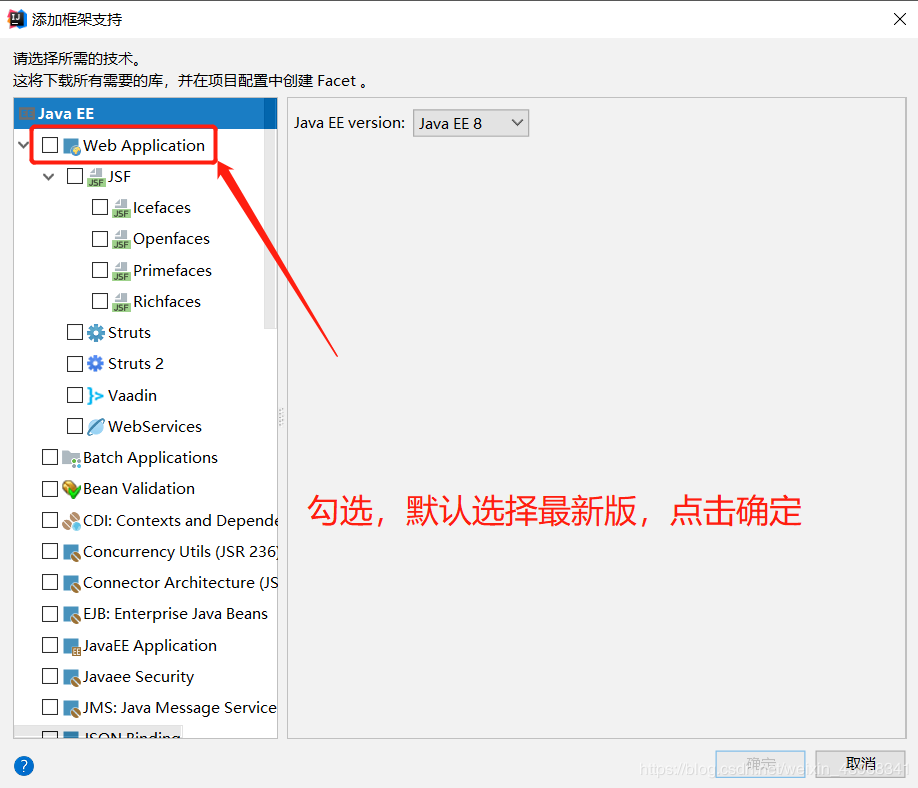

​選擇現有框架支持

3.3 pom.xml導入依賴,設置Maven資源過濾

<!--導入依賴--><dependencies> <!--Junit--> <dependency> <groupId>junit</groupId> <artifactId>junit</artifactId> <version>4.12</version> </dependency> <!--數據庫驅動--> <dependency> <groupId>mysql</groupId> <artifactId>mysql-connector-java</artifactId> <version>8.0.15</version> </dependency> <!-- 數據庫連接池 --> <dependency> <groupId>com.mchange</groupId> <artifactId>c3p0</artifactId> <version>0.9.5.2</version> </dependency> <!--Servlet - JSP --> <dependency> <groupId>javax.servlet</groupId> <artifactId>servlet-api</artifactId> <version>2.5</version> </dependency> <dependency> <groupId>javax.servlet.jsp</groupId> <artifactId>jsp-api</artifactId> <version>2.2</version> </dependency> <dependency> <groupId>javax.servlet</groupId> <artifactId>jstl</artifactId> <version>1.2</version> </dependency> <!--Mybatis--> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis</artifactId> <version>3.5.2</version> </dependency> <dependency> <groupId>org.mybatis</groupId> <artifactId>mybatis-spring</artifactId> <version>2.0.2</version> </dependency> <!--Spring--> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-webmvc</artifactId> <version>5.1.9.RELEASE</version> </dependency> <dependency> <groupId>org.springframework</groupId> <artifactId>spring-jdbc</artifactId> <version>5.1.9.RELEASE</version> </dependency> <!--lombok--> <dependency> <groupId>org.projectlombok</groupId> <artifactId>lombok</artifactId> <version>1.18.10</version> </dependency></dependencies><!--靜態資源導出問題--><build> <resources> <resource> <directory>src/main/java</directory> <includes> <include>**/*.properties</include> <include>**/*.xml</include> </includes> <filtering>false</filtering> </resource> <resource> <directory>src/main/resources</directory> <includes> <include>**/*.properties</include> <include>**/*.xml</include> </includes> <filtering>false</filtering> </resource> </resources></build>

3.4 編寫MyBatis-config.xml（核心配置文件）

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE configuration PUBLIC '-//mybatis.org//DTD Config 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-config.dtd'><configuration> <!--設置運行日志--> <settings> <setting name='logImpl' value='STDOUT_LOGGING'/> </settings> <!--取別名--> <typeAliases> <package name='com.pojo'/> </typeAliases> <!--綁定mapper，根據自己的項目設置--> <mappers> <mapper resource='com/dao/Mapper.xml'/> </mappers></configuration>

3.5 編寫database.properties（數據庫配置文件）

jdbc.driver=com.mysql.cj.jdbc.Driverjdbc.url=jdbc:mysql://localhost:3306/數據庫名?useSSL=true&useUnicode=true&characterEncoding=utf8jdbc.username=數據庫用戶名jdbc.password=數據庫密碼

​根據自己的MySQL以及項目實際使用的數據庫來修改設置

​注：MySQL8.0以上驅動得使用com.mysql.cj.jdbc.Driver

3.6 編寫Spring-dao.xml（Spring整合MyBatis配置文件）

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context https://www.springframework.org/schema/context/spring-context.xsd'> <!-- 配置整合mybatis --> <!-- 1.關聯數據庫文件 --> <context:property-placeholder location='classpath:database.properties'/> <!-- 2.數據庫連接池 --> <!--數據庫連接池 dbcp 半自動化操作 不能自動連接 c3p0 自動化操作（自動的加載配置文件 并且設置到對象里面） --> <bean class='com.mchange.v2.c3p0.ComboPooledDataSource'> <!-- 配置連接池屬性 --> <property name='driverClass' value='${jdbc.driver}'/> <property name='jdbcUrl' value='${jdbc.url}'/> <property name='user' value='${jdbc.username}'/> <property name='password' value='${jdbc.password}'/> <!-- c3p0連接池的私有屬性 --> <property name='maxPoolSize' value='30'/> <property name='minPoolSize' value='10'/> <!-- 關閉連接后不自動commit --> <property name='autoCommitOnClose' value='false'/> <!-- 獲取連接超時時間 --> <property name='checkoutTimeout' value='10000'/> <!-- 當獲取連接失敗重試次數 --> <property name='acquireRetryAttempts' value='2'/> </bean> <!-- 3.配置SqlSessionFactory對象 --> <bean class='org.mybatis.spring.SqlSessionFactoryBean'> <!-- 注入數據庫連接池 --> <property name='dataSource' ref='dataSource'/> <!-- 配置MyBaties全局配置文件:MyBatis-config.xml --> <property name='configLocation' value='classpath:MyBatis-config.xml'/> </bean> <!-- 4.配置掃描Dao接口包，動態實現Dao接口注入到spring容器中 --> <!--解釋 ：https://www.cnblogs.com/jpfss/p/7799806.html--> <bean class='org.mybatis.spring.mapper.MapperScannerConfigurer'> <!-- 注入sqlSessionFactory --> <property name='sqlSessionFactoryBeanName' value='sqlSessionFactory'/> <!-- 給出需要掃描Dao接口包 --> <property name='basePackage' value='com.dao'/> </bean></beans>

3.7 編寫Spring-service.xml（Spring整合service層）

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd'> <!-- 掃描service相關的bean --> <context:component-scan base-package='com.service' /> <!--ServiceImpl注入到IOC容器中，此處需要修改成自己的--> <bean class='com.service.ServiceImpl'> <property name='Mapper' ref='Mapper'/> </bean> <!-- 配置事務管理器 --> <bean class='org.springframework.jdbc.datasource.DataSourceTransactionManager'> <!-- 注入數據庫連接池 --> <property name='dataSource' ref='dataSource' /> </bean></beans>

3.8 修改web.xml文件

<?xml version='1.0' encoding='UTF-8'?><web-app xmlns='http://xmlns.jcp.org/xml/ns/javaee' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_4_0.xsd' version='4.0'> <!--DispatcherServlet--> <servlet> <servlet-name>DispatcherServlet</servlet-name> <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class> <init-param> <param-name>contextConfigLocation</param-name> <!--一定要注意:我們這里加載的是總的配置文件，之前被這里坑了！--> <param-value>classpath:applicationContext.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>DispatcherServlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> <!--encodingFilter--> <filter> <filter-name>encodingFilter</filter-name> <filter-class> org.springframework.web.filter.CharacterEncodingFilter </filter-class> <init-param> <param-name>encoding</param-name> <param-value>utf-8</param-value> </init-param> </filter> <filter-mapping> <filter-name>encodingFilter</filter-name> <url-pattern>/*</url-pattern> </filter-mapping> <!--Session過期時間--> <session-config> <session-timeout>15</session-timeout> </session-config></web-app>

3.9 編寫Spring-mvc.xml

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xmlns:context='http://www.springframework.org/schema/context' xmlns:mvc='http://www.springframework.org/schema/mvc' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context.xsd http://www.springframework.org/schema/mvc https://www.springframework.org/schema/mvc/spring-mvc.xsd'> <!-- 配置SpringMVC --> <!-- 1.開啟SpringMVC注解驅動 --> <mvc:annotation-driven /> <!-- 2.靜態資源默認servlet配置--> <mvc:default-servlet-handler/> <!-- 3.配置jsp 顯示ViewResolver視圖解析器 --> <bean class='org.springframework.web.servlet.view.InternalResourceViewResolver'> <property name='viewClass' value='org.springframework.web.servlet.view.JstlView' /> <!--此處注意路徑問題,/WEB-INF/jsp/--> <property name='prefix' value='/WEB-INF/jsp/' /> <property name='suffix' value='.jsp' /> </bean> <!-- 4.掃描web相關的bean --> <context:component-scan base-package='com.controller' /></beans>

3.10 編寫applicationContext.xml（Spring配置整合文件）

<?xml version='1.0' encoding='UTF-8'?><beans xmlns='http://www.springframework.org/schema/beans' xmlns:xsi='http://www.w3.org/2001/XMLSchema-instance' xsi:schemaLocation='http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsd'> <!--將Spring其他配置文件整合到一個總的配置文件，用的時候使用這個配置文件--> <import resource='classpath:Spring-service.xml'/> <import resource='classpath:Spring-dao.xml'/> <import resource='classpath:Spring-mvc.xml'/></beans>

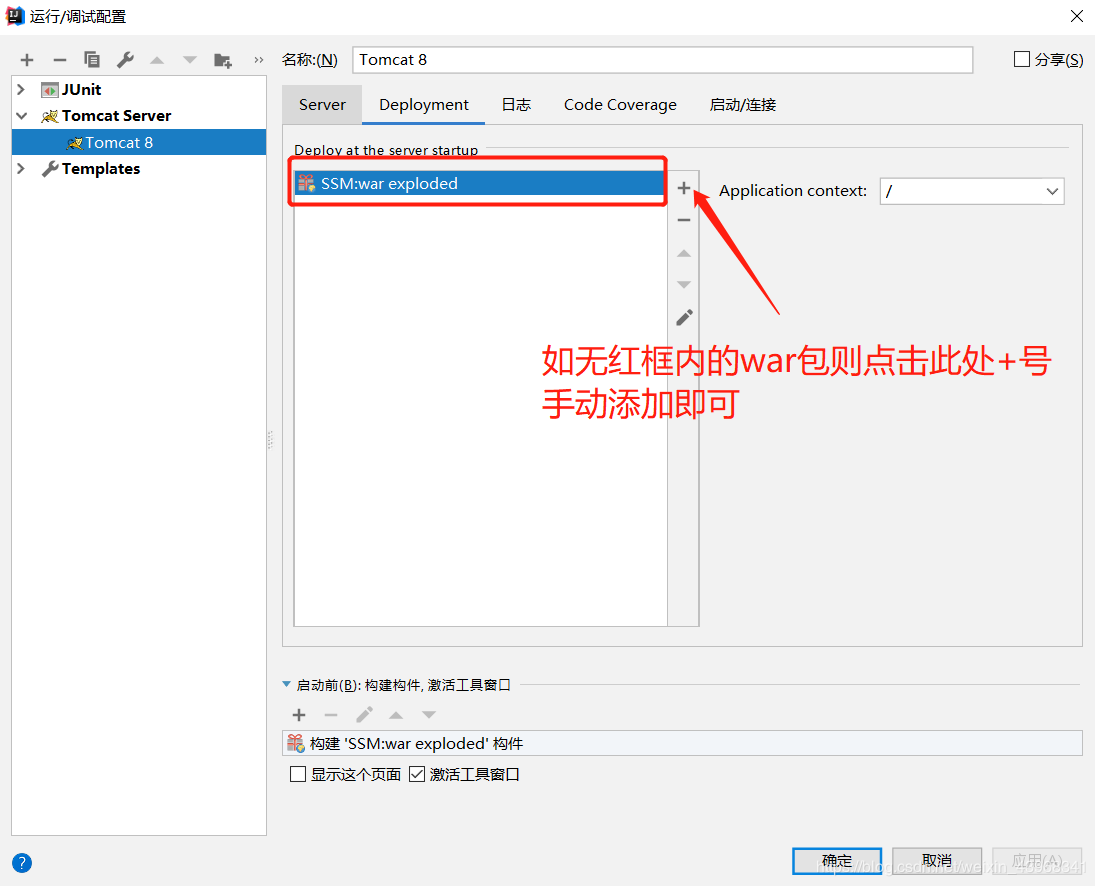

3.11 配置Tomcat

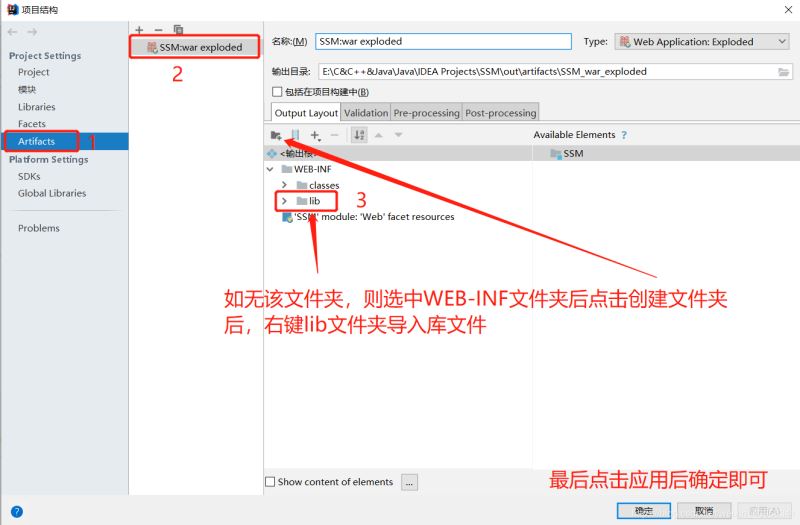

3.12 檢查項目結構（左上角 文件 -> 項目結構）

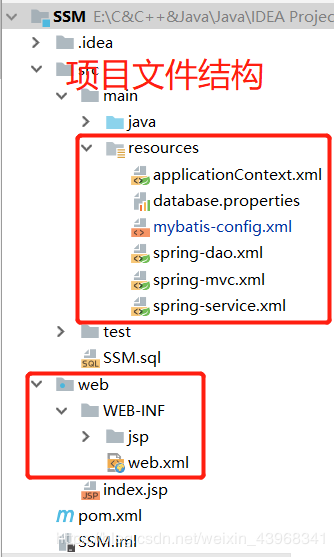

3.13 最后的項目文件結構

​到了這里，框架已經搭建完成

<?xml version='1.0' encoding='UTF-8' ?><!DOCTYPE mapper PUBLIC '-//mybatis.org//DTD Mapper 3.0//EN' 'http://mybatis.org/dtd/mybatis-3-mapper.dtd'><!--綁定對應的接口--><mapper namespace='com.dao.Mapper'> <!--此處寫對應的SQL操作--></mapper>5 功能添加步驟 先編寫實體類（pojo） dao層：編寫接口，接口對應mapper.xml（建議同名） service層：編寫接口，編寫接口實現類（創建dao層對象，返回調用dao層的操作） controller層：負責具體的業務模塊流程的控制，在此層要調用service層的接口來控制業務流程 編寫相應的jsp文件6 建議

框架搭建完成后應寫個簡單的功能測試框架環境有無問題

7 SSM框架項目文件

http://xiazai.jb51.net/202005/yuanma/ssm_kuangjia_jb51.rar

總結
