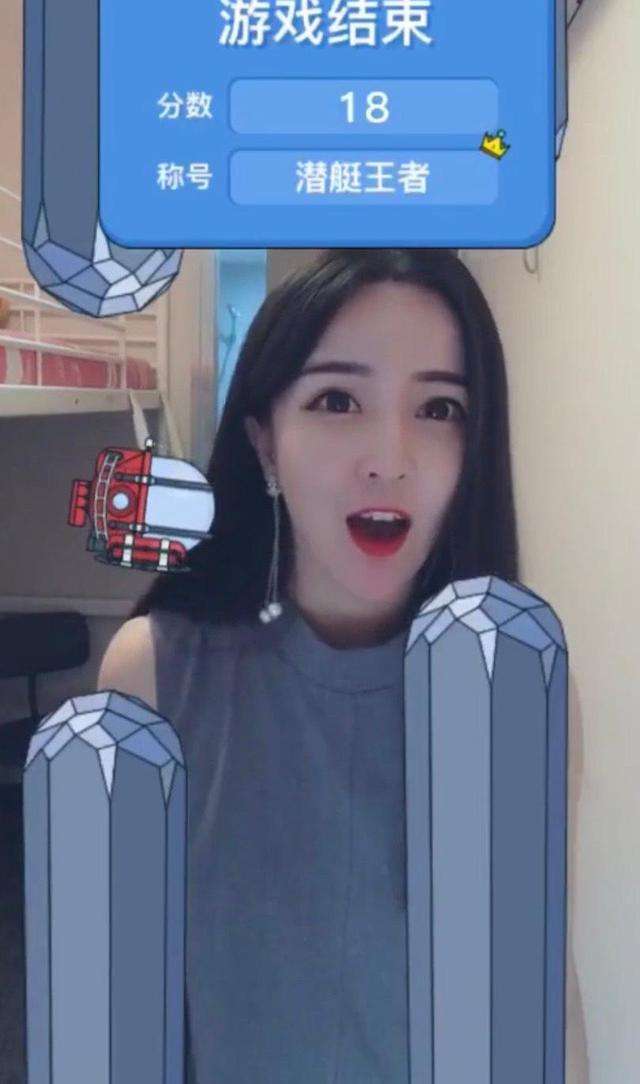

《潛水艇大挑戰》是抖音上的一款小游戲，以面部識別來驅動潛艇通過障礙物，最近特別火爆，相信很多人都玩過。

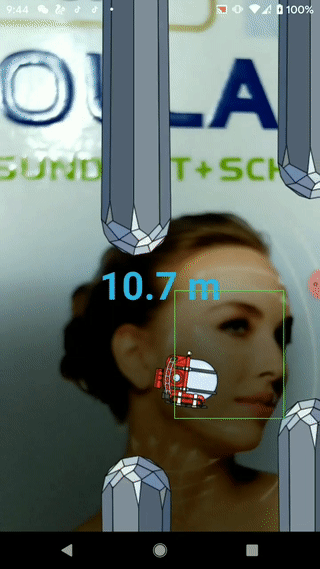

一時興起自己用Android自定義View也擼了一個，發現只要有好的創意，不用高深的技術照樣可以開發出好玩的應用。開發過程現拿出來與大家分享一下。

項目地址：

https://github.com/vitaviva/ugame

基本思路

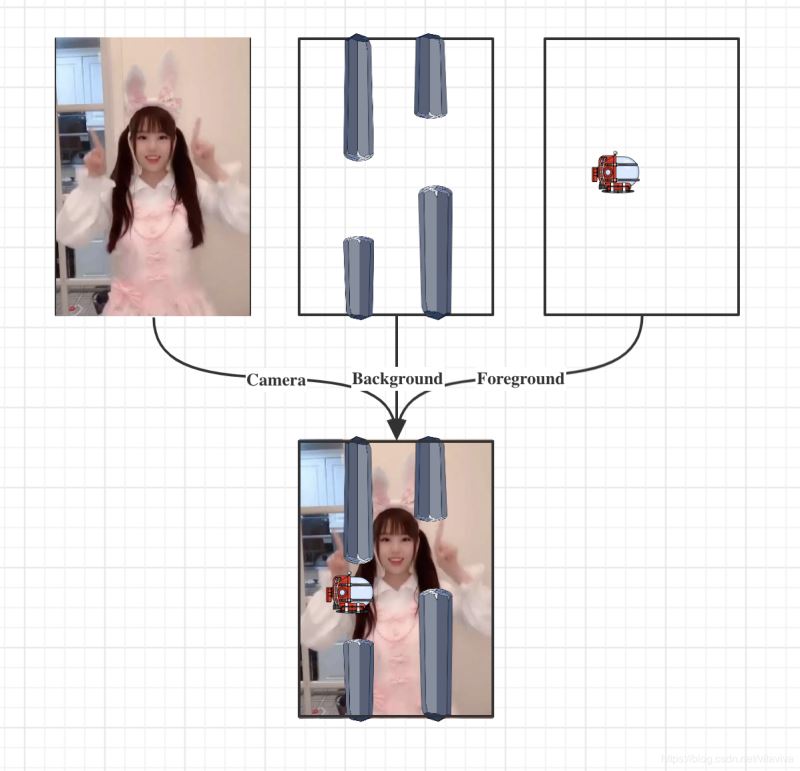

整個游戲視圖可以分成三層：

camera（相機）：處理相機的preview以及人臉識別 background（后景）：處理障礙物相關邏輯 foreground（前景）：處理潛艇相關

代碼也是按上面三個層面組織的，游戲界面的布局可以簡單理解為三層視圖的疊加，然后在各層視圖中完成相關工作

<FrameLayout xmlns:android='http://schemas.android.com/apk/res/android' xmlns:tools='http://schemas.android.com/tools' android:layout_width='match_parent' android:layout_height='match_parent'> <!-- 相機 --> <TextureView android:layout_width='match_parent' android:layout_height='match_parent'/> <!-- 后景 --> <com.my.ugame.bg.BackgroundView android:layout_width='match_parent' android:layout_height='match_parent'/> <!-- 前景 --> <com.my.ugame.fg.ForegroundView android:layout_width='match_parent' android:layout_height='match_parent'/></Framelayout>

開發中會涉及以下技術的使用，沒有高精尖、都是大路貨：

相機：使用Camera2完成相機的預覽和人臉識別 自定義View：定義并控制障礙物和潛艇 屬性動畫：控制障礙物和潛艇的移動及各種動效

少??攏?瓤炊?鰨∠旅娼檣芨韃糠執?氳氖迪幀?/p>

后景（Background）Bar

首先定義障礙物基類Bar，主要負責是將bitmap資源繪制到指定區域。由于障礙物從屏幕右側定時刷新時的高度隨機，所以其繪制區域的x、y、w、h需要?jiǎng)討B(tài)設置

/** * 障礙物基類 */sealed class Bar(context: Context) { protected open val bmp = context.getDrawable(R.mipmap.bar)!!.toBitmap() protected abstract val srcRect: Rect private lateinit var dstRect: Rect private val paint = Paint() var h = 0F set(value) { field = value dstRect = Rect(0, 0, w.toInt(), h.toInt()) } var w = 0F set(value) { field = value dstRect = Rect(0, 0, w.toInt(), h.toInt()) } var x = 0F set(value) { view.x = value field = value } val y get() = view.y internal val view by lazy { BarView(context) { it?.apply { drawBitmap( bmp, srcRect, dstRect, paint ) } } }}internal class BarView(context: Context?, private val block: (Canvas?) -> Unit) : View(context) { override fun onDraw(canvas: Canvas?) { block((canvas)) }}

障礙物分為上方和下方兩種，由于使用了同一張資源，所以繪制時要區別對待，因此定義了兩個子類：UpBar和DnBar

/** * 屏幕上方障礙物 */class UpBar(context: Context, container: ViewGroup) : Bar(context) { private val _srcRect by lazy(LazyThreadSafetyMode.NONE) { Rect(0, (bmp.height * (1 - (h / container.height))).toInt(), bmp.width, bmp.height) } override val srcRect: Rect get() = _srcRect}

下方障礙物的資源旋轉180度后繪制

/** * 屏幕下方障礙物 */class DnBar(context: Context, container: ViewGroup) : Bar(context) { override val bmp = super.bmp.let { Bitmap.createBitmap( it, 0, 0, it.width, it.height, Matrix().apply { postRotate(-180F) }, true ) } private val _srcRect by lazy(LazyThreadSafetyMode.NONE) { Rect(0, 0, bmp.width, (bmp.height * (h / container.height)).toInt()) } override val srcRect: Rect get() = _srcRect}

BackgroundView

接下來創建后景的容器BackgroundView，容器用來定時地創建、并移動障礙物。通過列表barsList管理當前所有的障礙物，onLayout中，將障礙物分別布局到屏幕上方和下方

/** * 后景容器類 */class BackgroundView(context: Context, attrs: AttributeSet?) : FrameLayout(context, attrs) { internal val barsList = mutableListOf<Bars>() override fun onLayout(changed: Boolean, left: Int, top: Int, right: Int, bottom: Int) { barsList.flatMap { listOf(it.up, it.down) }.forEach { val w = it.view.measuredWidth val h = it.view.measuredHeight when (it) { is UpBar -> it.view.layout(0, 0, w, h) else -> it.view.layout(0, height - h, w, height) } } }

提供兩個方法start和stop，控制游戲的開始和結束：

游戲結束時，要求所有障礙物停止移動。 游戲開始后會通過Timer，定時刷新障礙物

/** * 游戲結束，停止所有障礙物的移動 */ @UiThread fun stop() { _timer.cancel() _anims.forEach { it.cancel() } _anims.clear() } /** * 定時刷新障礙物： * 1. 創建 * 2. 添加到視圖 * 3. 移動 */ @UiThread fun start() { _clearBars() Timer().also { _timer = it }.schedule(object : TimerTask() { override fun run() { post { _createBars(context, barsList.lastOrNull()).let { _addBars(it) _moveBars(it) } } } }, FIRST_APPEAR_DELAY_MILLIS, BAR_APPEAR_INTERVAL_MILLIS ) } /** * 游戲重啟時，清空障礙物 */ private fun _clearBars() { barsList.clear() removeAllViews() }

刷新障礙物

障礙物的刷新經歷三個步驟：

創建：上下兩個為一組創建障礙物 添加：將對象添加到barsList，同時將View添加到容器 移動：通過屬性動畫從右側移動到左側，并在移出屏幕后刪除

創建障礙物時會為其設置隨機高度，隨機不能太過，要以前一個障礙物為基礎進行適當調整，保證隨機的同時兼具連貫性

/** * 創建障礙物（上下兩個為一組） */ private fun _createBars(context: Context, pre: Bars?) = run { val up = UpBar(context, this).apply { h = pre?.let { val step = when { it.up.h >= height - _gap - _step -> -_step it.up.h <= _step -> _step _random.nextBoolean() -> _step else -> -_step } it.up.h + step } ?: _barHeight w = _barWidth } val down = DnBar(context, this).apply { h = height - up.h - _gap w = _barWidth } Bars(up, down) } /** * 添加到屏幕 */ private fun _addBars(bars: Bars) { barsList.add(bars) bars.asArray().forEach { addView( it.view, ViewGroup.LayoutParams( it.w.toInt(), it.h.toInt() ) ) } } /** * 使用屬性動畫移動障礙物 */ private fun _moveBars(bars: Bars) { _anims.add( ValueAnimator.ofFloat(width.toFloat(), -_barWidth) .apply { addUpdateListener { bars.asArray().forEach { bar -> bar.x = it.animatedValue as Float if (bar.x + bar.w <= 0) { post { removeView(bar.view) } } } } duration = BAR_MOVE_DURATION_MILLIS interpolator = LinearInterpolator() start() }) }}

前景（Foreground）

Boat

定會潛艇類Boat，創建自定義View，并提供方法移動到指定坐標

/** * 潛艇類 */class Boat(context: Context) { internal val view by lazy { BoatView(context) } val h get() = view.height.toFloat() val w get() = view.width.toFloat() val x get() = view.x val y get() = view.y /** * 移動到指定坐標 */ fun moveTo(x: Int, y: Int) { view.smoothMoveTo(x, y) }}

BoatView

自定義View中完成以下幾個事情

通過兩個資源定時切換，實現探照燈閃爍的效果 通過OverScroller讓移動過程更加順滑 通過一個Rotation Animation，讓潛艇在移動時可以調轉角度，更加靈動

internal class BoatView(context: Context?) : AppCompatImageView(context) { private val _scroller by lazy { OverScroller(context) } private val _res = arrayOf( R.mipmap.boat_000, R.mipmap.boat_002 ) private var _rotationAnimator: ObjectAnimator? = null private var _cnt = 0 set(value) { field = if (value > 1) 0 else value } init { scaleType = ScaleType.FIT_CENTER _startFlashing() } private fun _startFlashing() { postDelayed({ setImageResource(_res[_cnt++]) _startFlashing() }, 500) } override fun computeScroll() { super.computeScroll() if (_scroller.computeScrollOffset()) { x = _scroller.currX.toFloat() y = _scroller.currY.toFloat() // Keep on drawing until the animation has finished. postInvalidateOnAnimation() } } /** * 移動更加順換 */ internal fun smoothMoveTo(x: Int, y: Int) { if (!_scroller.isFinished) _scroller.abortAnimation() _rotationAnimator?.let { if (it.isRunning) it.cancel() } val curX = this.x.toInt() val curY = this.y.toInt() val dx = (x - curX) val dy = (y - curY) _scroller.startScroll(curX, curY, dx, dy, 250) _rotationAnimator = ObjectAnimator.ofFloat( this, 'rotation', rotation, Math.toDegrees(atan((dy / 100.toDouble()))).toFloat() ).apply { duration = 100 start() } postInvalidateOnAnimation() }}

ForegroundView

通過boat成員持有潛艇對象，并對其進行控制 實現CameraHelper.FaceDetectListener根據人臉識別的回調，移動潛艇到指定位置 游戲開始時，創建潛艇并做開場動畫

/** * 前景容器類 */class ForegroundView(context: Context, attrs: AttributeSet?) : FrameLayout(context, attrs), CameraHelper.FaceDetectListener { private var _isStop: Boolean = false internal var boat: Boat? = null /** * 游戲停止，潛艇不再移動 */ @MainThread fun stop() { _isStop = true } /** * 接受人臉識別的回調，移動位置 */ override fun onFaceDetect(faces: Array<Face>, facesRect: ArrayList<RectF>) { if (_isStop) return if (facesRect.isNotEmpty()) { boat?.run { val face = facesRect.first() val x = (face.left - _widthOffset).toInt() val y = (face.top + _heightOffset).toInt() moveTo(x, y) } _face = facesRect.first() } }}

開場動畫

游戲開始時，將潛艇通過動畫移動到起始位置，即y軸的二分之一處

/** * 游戲開始時通過動畫進入 */ @MainThread fun start() { _isStop = false if (boat == null) { boat = Boat(context).also { post { addView(it.view, _width, _width) AnimatorSet().apply { play( ObjectAnimator.ofFloat( it.view, 'y', 0F, [email protected] / 2f ) ).with( ObjectAnimator.ofFloat(it.view, 'rotation', 0F, 360F) ) doOnEnd { _ -> it.view.rotation = 0F } duration = 1000 }.start() } } } }

相機（Camera）

相機部分主要有TextureView和CameraHelper組成。TextureView提供給Camera承載preview；工具類CameraHelper主要完成以下功能：

開啟相機：通過CameraManger代開攝像頭 攝像頭切換：切換前后置攝像頭， 預覽：獲取Camera提供的可預覽尺寸，并適配TextureView顯示 人臉識別：檢測人臉位置，進行TestureView上的坐標變換

相機硬件提供的可預覽尺寸與屏幕實際尺寸（即TextureView尺寸）可能不一致，所以需要在相機初始化時，選取最合適的PreviewSize，避免TextureView上發生畫面拉伸等異常

class CameraHelper(val mActivity: Activity, private val mTextureView: TextureView) { private lateinit var mCameraManager: CameraManager private var mCameraDevice: CameraDevice? = null private var mCameraCaptureSession: CameraCaptureSession? = null private var canExchangeCamera = false //是否可以切換攝像頭 private var mFaceDetectMatrix = Matrix() //人臉檢測坐標轉換矩陣 private var mFacesRect = ArrayList<RectF>() //保存人臉坐標信息 private var mFaceDetectListener: FaceDetectListener? = null //人臉檢測回調 private lateinit var mPreviewSize: Size /** * 初始化 */ private fun initCameraInfo() { mCameraManager = mActivity.getSystemService(Context.CAMERA_SERVICE) as CameraManager val cameraIdList = mCameraManager.cameraIdList if (cameraIdList.isEmpty()) { mActivity.toast('沒有可用相機') return } //獲取攝像頭方向 mCameraSensorOrientation = mCameraCharacteristics.get(CameraCharacteristics.SENSOR_ORIENTATION)!! //獲取StreamConfigurationMap，它是管理攝像頭支持的所有輸出格式和尺寸 val configurationMap = mCameraCharacteristics.get(CameraCharacteristics.SCALER_STREAM_CONFIGURATION_MAP)!! val previewSize = configurationMap.getOutputSizes(SurfaceTexture::class.java) //預覽尺寸 // 當屏幕為垂直的時候需要把寬高值進行調換，保證寬大于高 mPreviewSize = getBestSize( mTextureView.height, mTextureView.width, previewSize.toList() ) //根據preview的size設置TextureView mTextureView.surfaceTexture.setDefaultBufferSize(mPreviewSize.width, mPreviewSize.height) mTextureView.setAspectRatio(mPreviewSize.height, mPreviewSize.width) }

選取preview尺寸的原則與TextureView的長寬比盡量一致，且面積盡量接近。

private fun getBestSize( targetWidth: Int, targetHeight: Int, sizeList: List<Size> ): Size { val bigEnough = ArrayList<Size>() //比指定寬高大的Size列表 val notBigEnough = ArrayList<Size>() //比指定寬高小的Size列表 for (size in sizeList) { //寬高比 == 目標值寬高比 if (size.width == size.height * targetWidth / targetHeight ) { if (size.width >= targetWidth && size.height >= targetHeight) bigEnough.add(size) else notBigEnough.add(size) } } //選擇bigEnough中最小的值 或 notBigEnough中最大的值 return when { bigEnough.size > 0 -> Collections.min(bigEnough, CompareSizesByArea()) notBigEnough.size > 0 -> Collections.max(notBigEnough, CompareSizesByArea()) else -> sizeList[0] }initFaceDetect() }

initFaceDetect()用來進行人臉的Matrix初始化，后文介紹

人臉識別

為相機預覽，創建一個CameraCaptureSession對象，會話通過CameraCaptureSession.CaptureCallback返回TotalCaptureResult，通過參數可以讓其中包括人臉識別的相關信息

/** * 創建預覽會話 */ private fun createCaptureSession(cameraDevice: CameraDevice) { // 為相機預覽，創建一個CameraCaptureSession對象 cameraDevice.createCaptureSession( arrayListOf(surface), object : CameraCaptureSession.StateCallback() { override fun onConfigured(session: CameraCaptureSession) { mCameraCaptureSession = session session.setRepeatingRequest( captureRequestBuilder.build(), mCaptureCallBack, mCameraHandler ) } }, mCameraHandler ) } private val mCaptureCallBack = object : CameraCaptureSession.CaptureCallback() { override fun onCaptureCompleted( session: CameraCaptureSession, request: CaptureRequest, result: TotalCaptureResult ) { super.onCaptureCompleted(session, request, result) if (mFaceDetectMode != CaptureRequest.STATISTICS_FACE_DETECT_MODE_OFF) handleFaces(result) } }

通過mFaceDetectMatrix對人臉信息進行矩陣變化，確定人臉坐標以使其準確應用到TextureView。

/** * 處理人臉信息 */ private fun handleFaces(result: TotalCaptureResult) { val faces = result.get(CaptureResult.STATISTICS_FACES)!! mFacesRect.clear() for (face in faces) { val bounds = face.bounds val left = bounds.left val top = bounds.top val right = bounds.right val bottom = bounds.bottom val rawFaceRect = RectF(left.toFloat(), top.toFloat(), right.toFloat(), bottom.toFloat()) mFaceDetectMatrix.mapRect(rawFaceRect) var resultFaceRect = if (mCameraFacing == CaptureRequest.LENS_FACING_FRONT) { rawFaceRect } else { RectF( rawFaceRect.left, rawFaceRect.top - mPreviewSize.width, rawFaceRect.right, rawFaceRect.bottom - mPreviewSize.width ) } mFacesRect.add(resultFaceRect) } mActivity.runOnUiThread { mFaceDetectListener?.onFaceDetect(faces, mFacesRect) } }

最后，在UI線程將包含人臉坐標的Rect通過回調傳出：

mActivity.runOnUiThread { mFaceDetectListener?.onFaceDetect(faces, mFacesRect) }

FaceDetectMatrix

mFaceDetectMatrix是在獲取PreviewSize之后創建的

/** * 初始化人臉檢測相關信息 */ private fun initFaceDetect() { val faceDetectModes = mCameraCharacteristics.get(CameraCharacteristics.STATISTICS_INFO_AVAILABLE_FACE_DETECT_MODES) //人臉檢測的模式 mFaceDetectMode = when { faceDetectModes!!.contains(CaptureRequest.STATISTICS_FACE_DETECT_MODE_FULL) -> CaptureRequest.STATISTICS_FACE_DETECT_MODE_FULL faceDetectModes!!.contains(CaptureRequest.STATISTICS_FACE_DETECT_MODE_SIMPLE) -> CaptureRequest.STATISTICS_FACE_DETECT_MODE_FULL else -> CaptureRequest.STATISTICS_FACE_DETECT_MODE_OFF } if (mFaceDetectMode == CaptureRequest.STATISTICS_FACE_DETECT_MODE_OFF) { mActivity.toast('相機硬件不支持人臉檢測') return } val activeArraySizeRect = mCameraCharacteristics.get(CameraCharacteristics.SENSOR_INFO_ACTIVE_ARRAY_SIZE)!! //獲取成像區域 val scaledWidth = mPreviewSize.width / activeArraySizeRect.width().toFloat() val scaledHeight = mPreviewSize.height / activeArraySizeRect.height().toFloat() val mirror = mCameraFacing == CameraCharacteristics.LENS_FACING_FRONT mFaceDetectMatrix.setRotate(mCameraSensorOrientation.toFloat()) mFaceDetectMatrix.postScale(if (mirror) -scaledHeight else scaledHeight, scaledWidth)// 注意交換width和height的位置！ mFaceDetectMatrix.postTranslate( mPreviewSize.height.toFloat(), mPreviewSize.width.toFloat() ) }

控制類（GameController）

三大視圖層組裝完畢，最后需要一個總控類，對游戲進行邏輯控制

GameController

主要完成以下工作：

控制游戲的開啟/停止 計算游戲的當前得分 檢測潛艇的碰撞 對外（Activity或者Fragment等）提供游戲狀態監聽的接口

游戲開始時進行相機的初始化，創建GameHelper類并建立setFaceDetectListener回調到ForegroundView

class GameController( private val activity: AppCompatActivity, private val textureView: AutoFitTextureView, private val bg: BackgroundView, private val fg: ForegroundView) { private var camera2HelperFace: CameraHelper? = null /** * 相機初始化 */ private fun initCamera() { cameraHelper ?: run { cameraHelper = CameraHelper(activity, textureView).apply { setFaceDetectListener(object : CameraHelper.FaceDetectListener { override fun onFaceDetect(faces: Array<Face>, facesRect: ArrayList<RectF>) { if (facesRect.isNotEmpty()) { fg.onFaceDetect(faces, facesRect) } } }) } } }

游戲狀態

定義GameState，對外提供狀態的監聽。目前支持三種狀態

Start：游戲開始 Over：游戲結束 Score：游戲得分

sealed class GameState(open val score: Long) { object Start : GameState(0) data class Over(override val score: Long) : GameState(score) data class Score(override val score: Long) : GameState(score)}

可以在stop、start的時候，更新狀態

/** * 游戲狀態 */ private val _state = MutableLiveData<GameState>() internal val gameState: LiveData<GameState> get() = _state /** * 游戲停止 */ fun stop() { bg.stop() fg.stop() _state.value = GameState.Over(_score) _score = 0L } /** * 游戲再開 */ fun start() { initCamera() fg.start() bg.start() _state.value = GameState.Start handler.postDelayed({ startScoring() }, FIRST_APPEAR_DELAY_MILLIS) }

計算得分

游戲啟動時通過startScoring開始計算得分并通過GameState上報。目前的規則設置很簡單，存活時間即游戲得分

/** * 開始計分 */ private fun startScoring() { handler.postDelayed( { fg.boat?.run { bg.barsList.flatMap { listOf(it.up, it.down) } .forEach { bar -> if (isCollision( bar.x, bar.y, bar.w, bar.h, this.x, this.y, this.w, this.h ) ) { stop() return@postDelayed } } } _score++ _state.value = GameState.Score(_score) startScoring() }, 100 ) }

檢測碰撞

isCollision根據潛艇和障礙物當前位置，計算是否發生了碰撞，發生碰撞則GameOver

/** * 碰撞檢測 */ private fun isCollision( x1: Float, y1: Float, w1: Float, h1: Float, x2: Float, y2: Float, w2: Float, h2: Float ): Boolean { if (x1 > x2 + w2 || x1 + w1 < x2 || y1 > y2 + h2 || y1 + h1 < y2) { return false } return true }

Activity

Activity的工作簡單：

權限申請：動態申請Camera權限 監聽游戲狀態：創建GameController，并監聽GameState狀態

private fun startGame() { PermissionUtils.checkPermission(this, Runnable { gameController.start() gameController.gameState.observe(this, Observer { when (it) { is GameState.Start -> score.text = 'DANGERnAHEAD' is GameState.Score -> score.text = '${it.score / 10f} m' is GameState.Over -> AlertDialog.Builder(this) .setMessage('游戲結束！成功推進 ${it.score / 10f} 米! ') .setNegativeButton('結束游戲') { _: DialogInterface, _: Int -> finish() }.setCancelable(false) .setPositiveButton('再來一把') { _: DialogInterface, _: Int -> gameController.start() }.show() } }) }) }

最后

項目結構很清晰，用到的大都是常規技術，即使是新入坑Android的同學看起來也不費力。在現有基礎上還可以通過添加BGM、增加障礙物種類等，進一步提高游戲性。喜歡的話留個star鼓勵一下作者吧 ^^https://github.com/vitaviva/ugame
